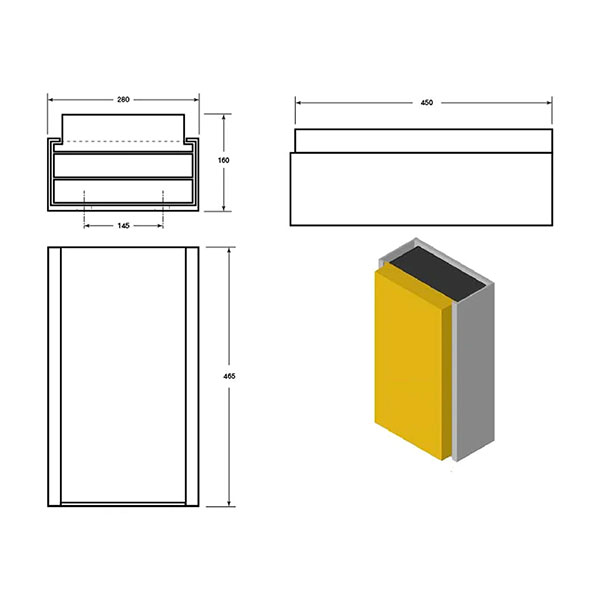

Rubber & Steel Dock Bumper 465 x 280 x 160mm

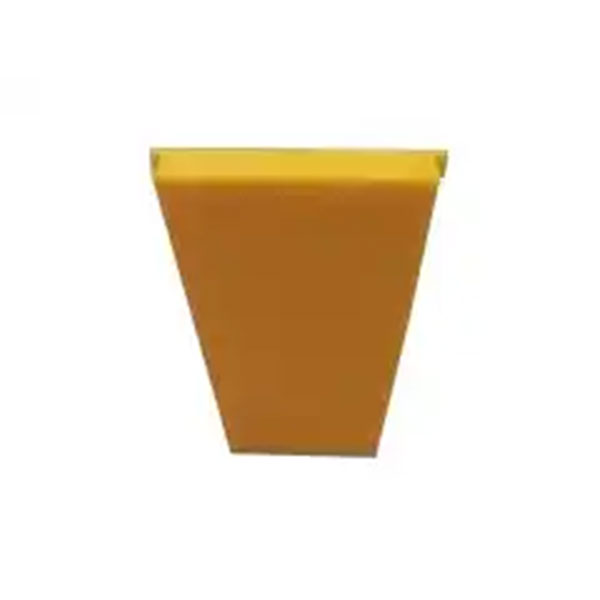

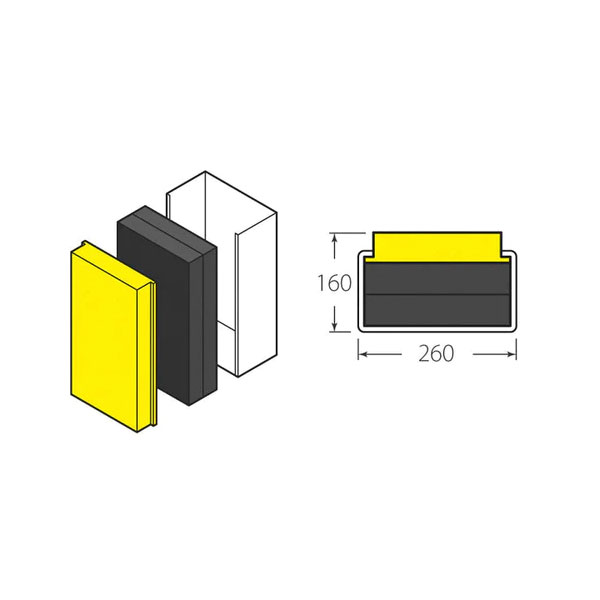

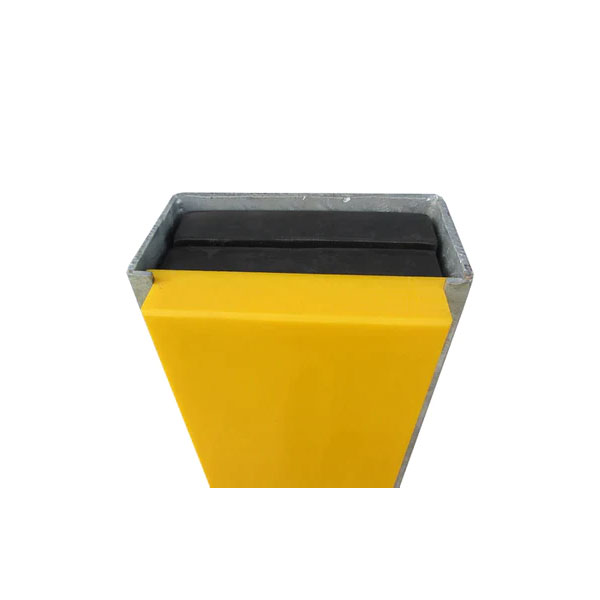

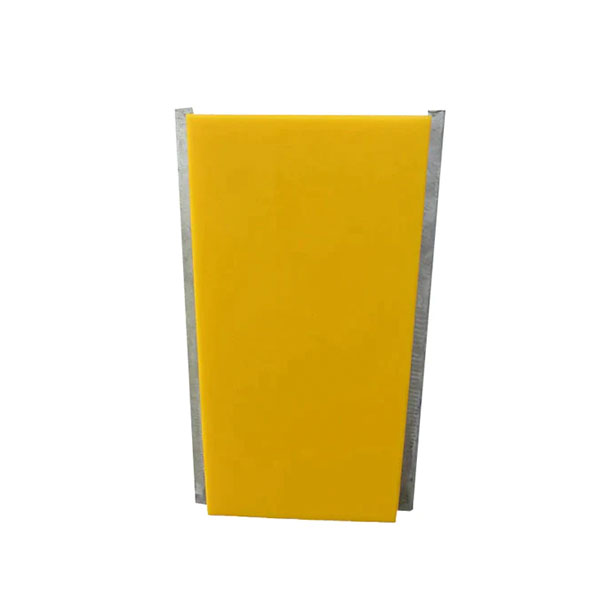

This Dock Bumpers 465 x 280 x 160 mm has a large impact area with no holes in the UHMWPE face plate for the back of the truck to snag on. The 50mm thick face can slide freely up and down in its steel cradle back plate.
Compresses 11mm under 15 tonne load

Free fixings included in it.
Cost-effective solution to protect your building from damage.

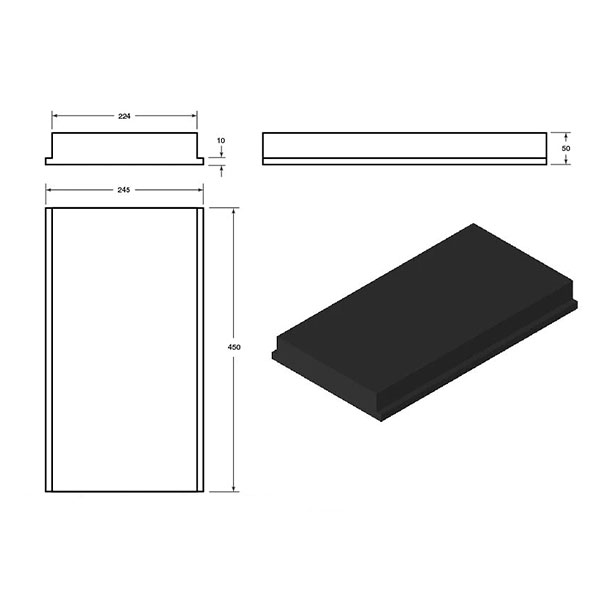

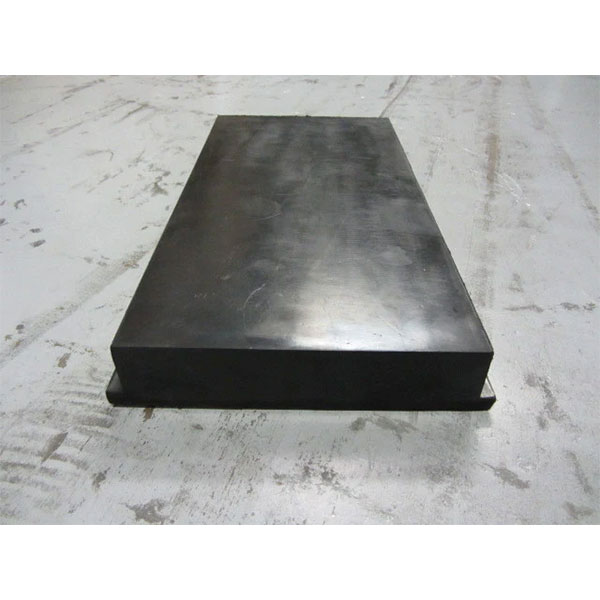

P033 Front Plate:
The P033 Front Plate is the black wear resistant rubber front plate. It is tough, performs well under compression and will withstand continuous use. It can be easily removed and replaced if it becomes damaged.

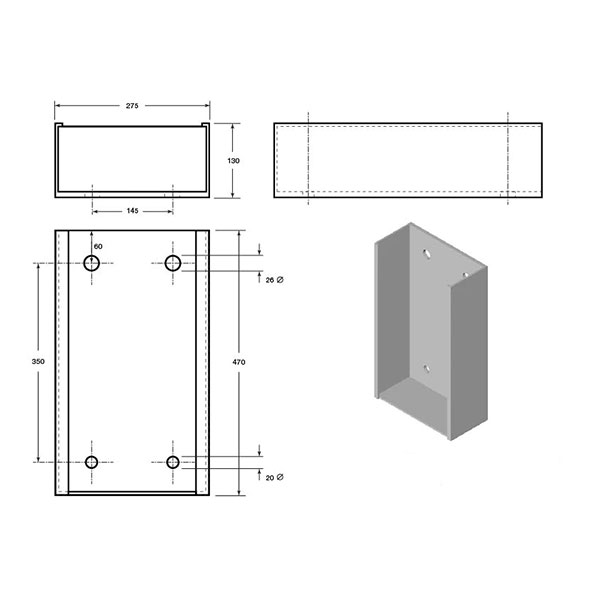

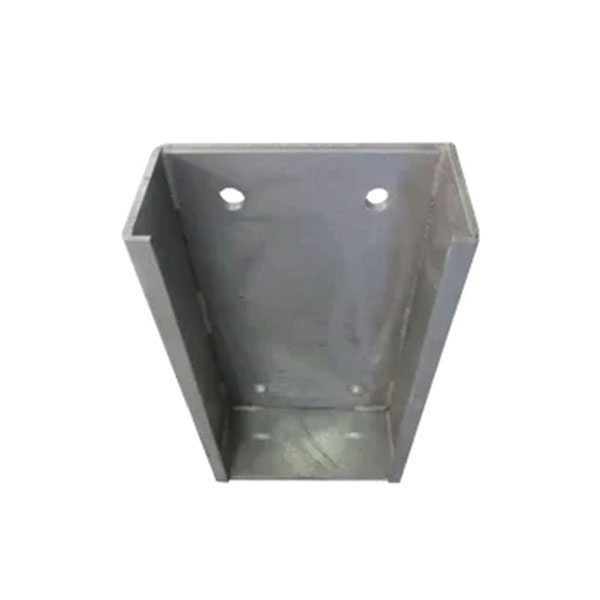

P055 Back Plate
The P055 is the backing plate used in our P022 Dock Bumper.
This backplate has 4 fixing holes… 2 at the top are 26mm dia to allow for M24 bolts to fix to an above dock angle bracket ( if required ) and 2 at the bottom at 20mm dia.
