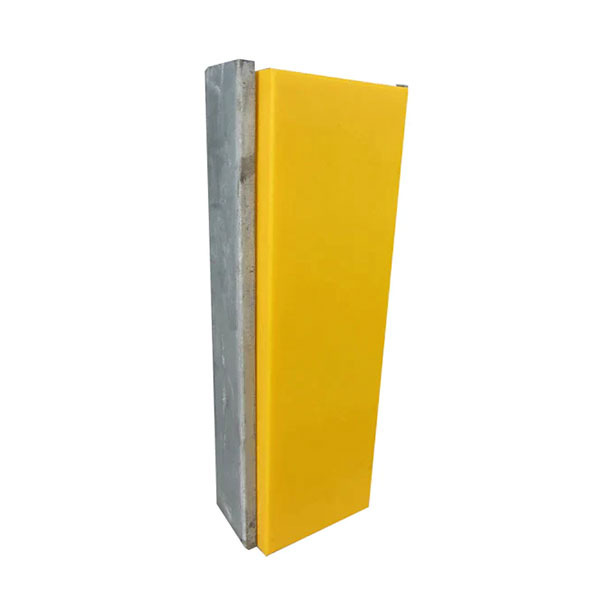

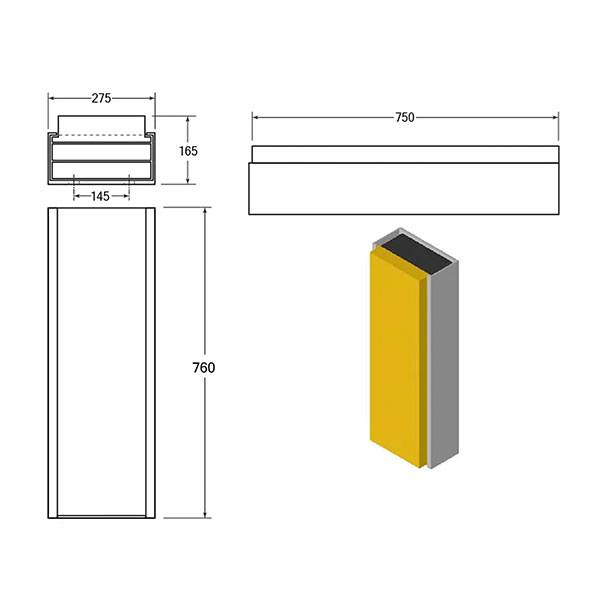

Rubber & Steel Dock Bumper 760 x 275 x 165mm

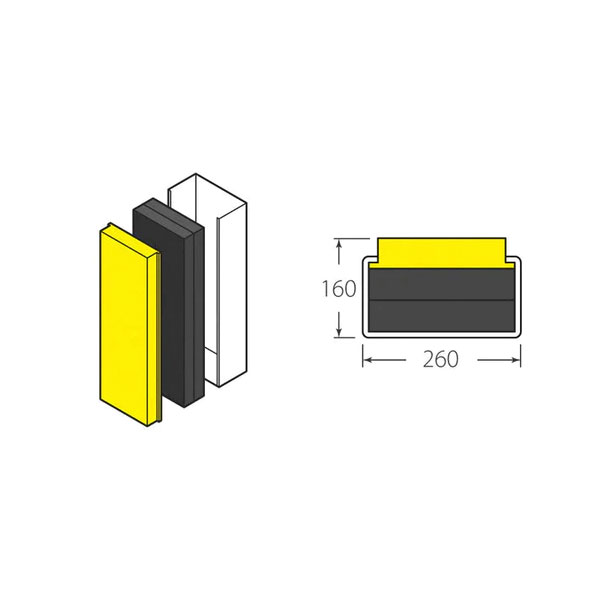

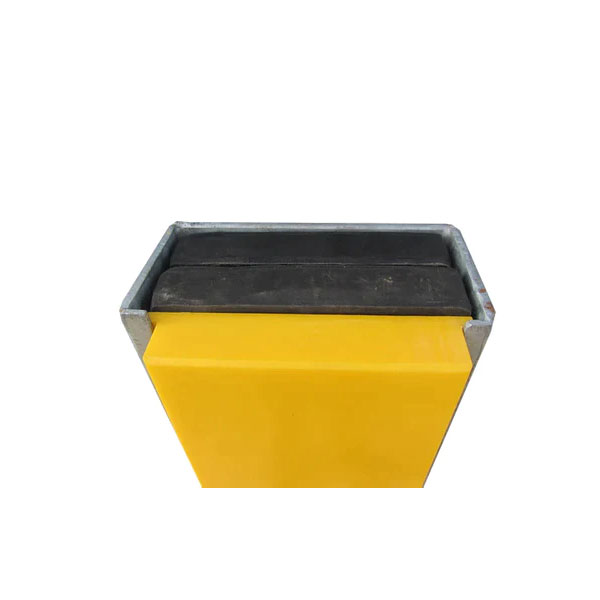

This Dock Bumpers 760x270x110 has a large impact area with no holes in the UHMWPE face plate for the back of the truck to snag on. The 50mm thick face can slide freely up and down in its steel cradle back plate.
The 2 middle photos show this part used in conjunction with part P061 Angle Bracket to help protect against trailers that over-ride the dock leveller.
Compresses 11mm under 15 tonne loads.

Free fixings included in it.
Cost-effective solution to protect your building from damage.

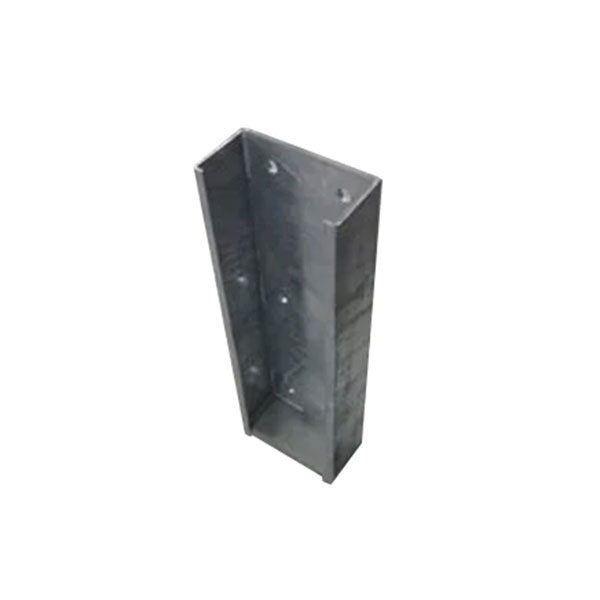

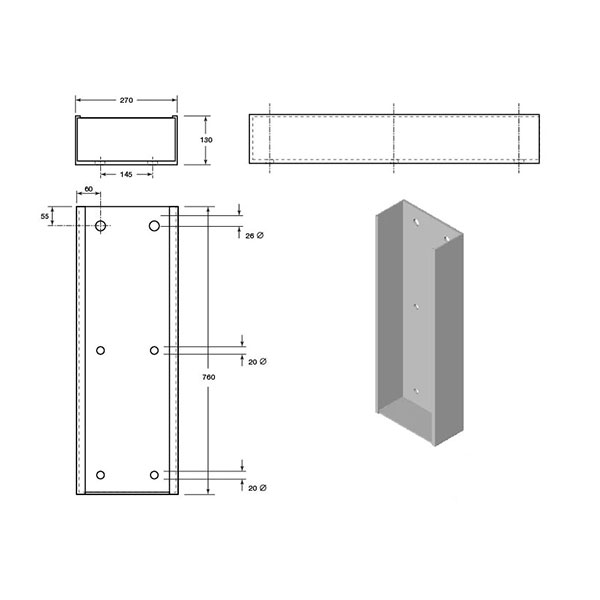

P058 Back Plate:
This backplate has six fixing holes… two at the top are 25mm dia to allow for M24 bolts to fix to an above dock angle bracket (if required), two half way down and two at the bottom 20mm dia.
