UHMWPE Split Bumper – 500/260mm

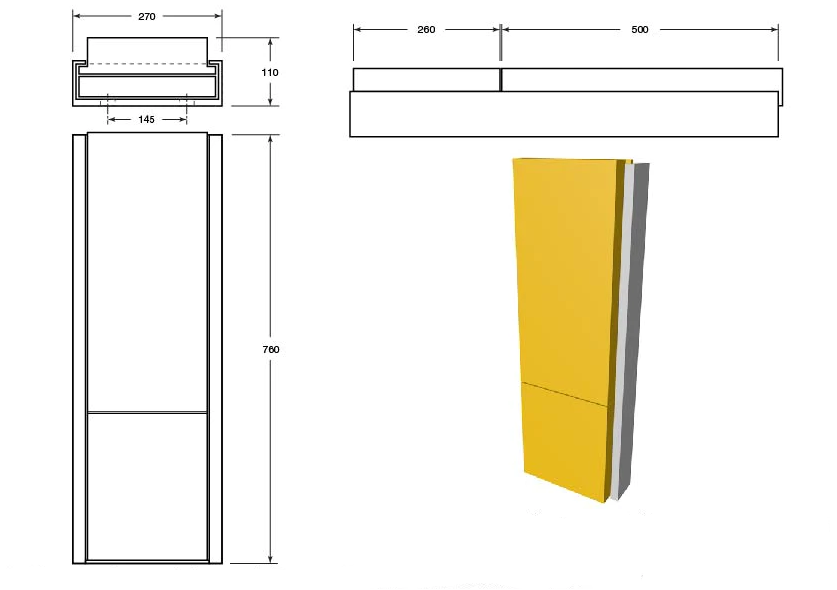

MODIFIED A023 UHMWPE BUMPER SPLIT 500/260MM
Current Stock: Made to order

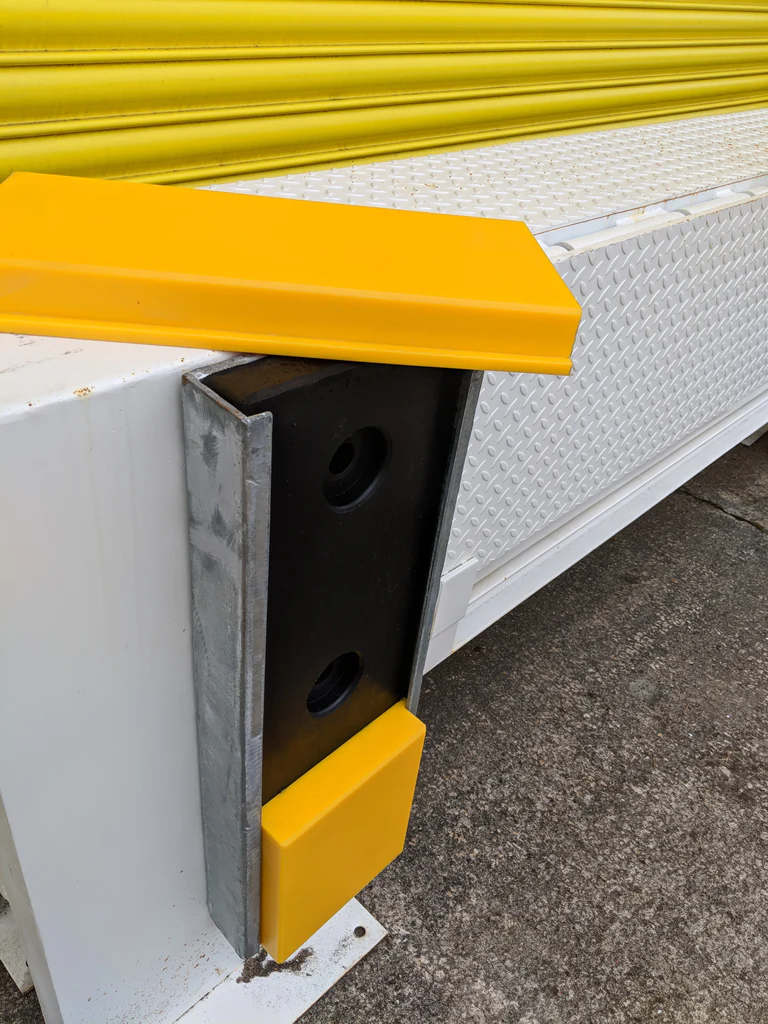

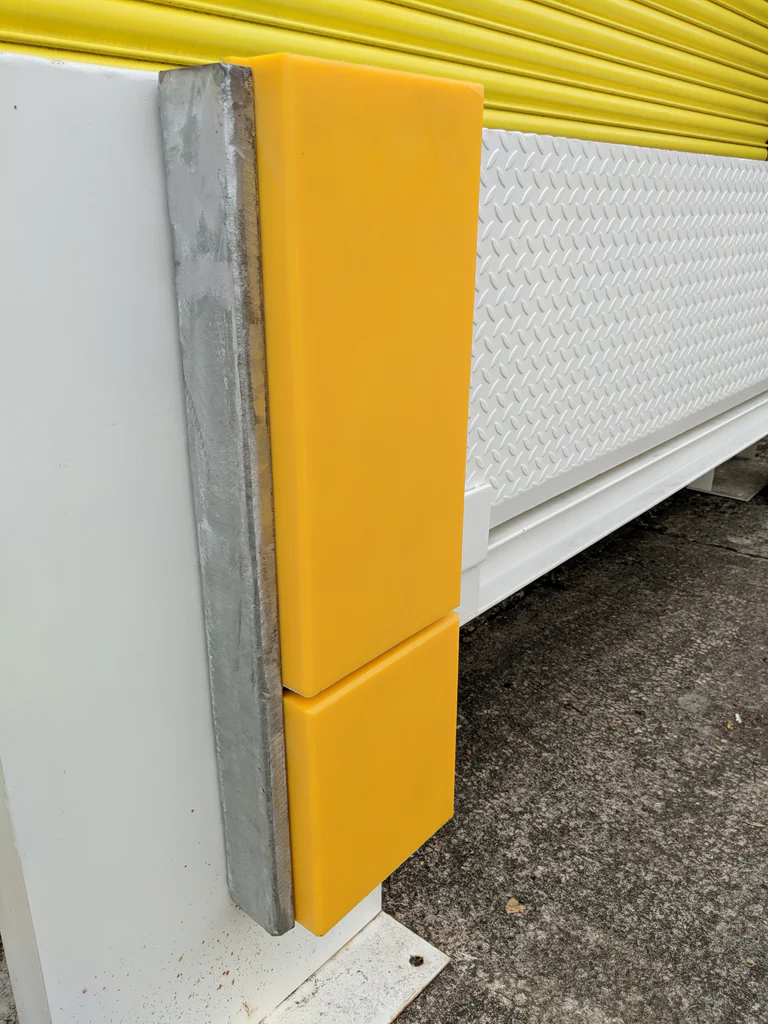

The 500mm larger PE part takes all the wear. When this part needs replacing the smaller 260mm part remains in place and only the 500mm part is required.

This assembly does not include fixings.

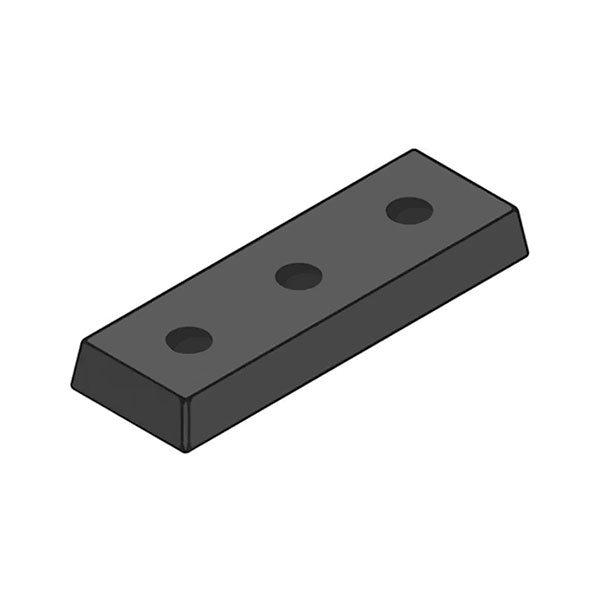

P007 Dock Bumper

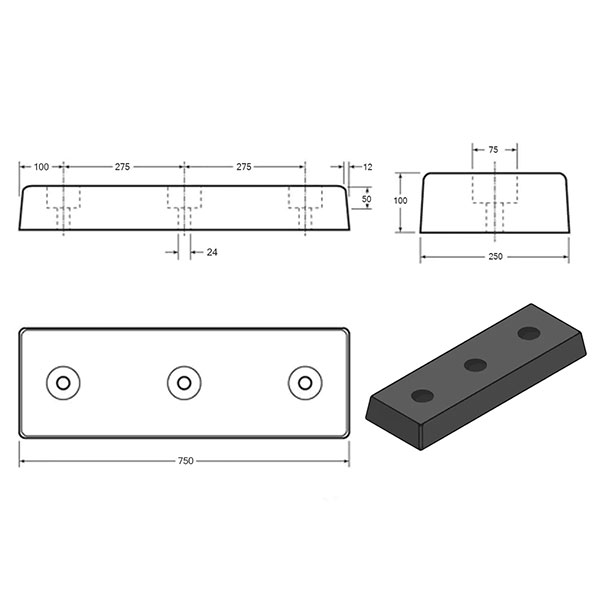

750mm dock bumpers prevent HGV’s under-riding the bumper and ripping it off the wall. If they are installed with a bracket it is possible to prevent the delivery vehicle from overriding as well.

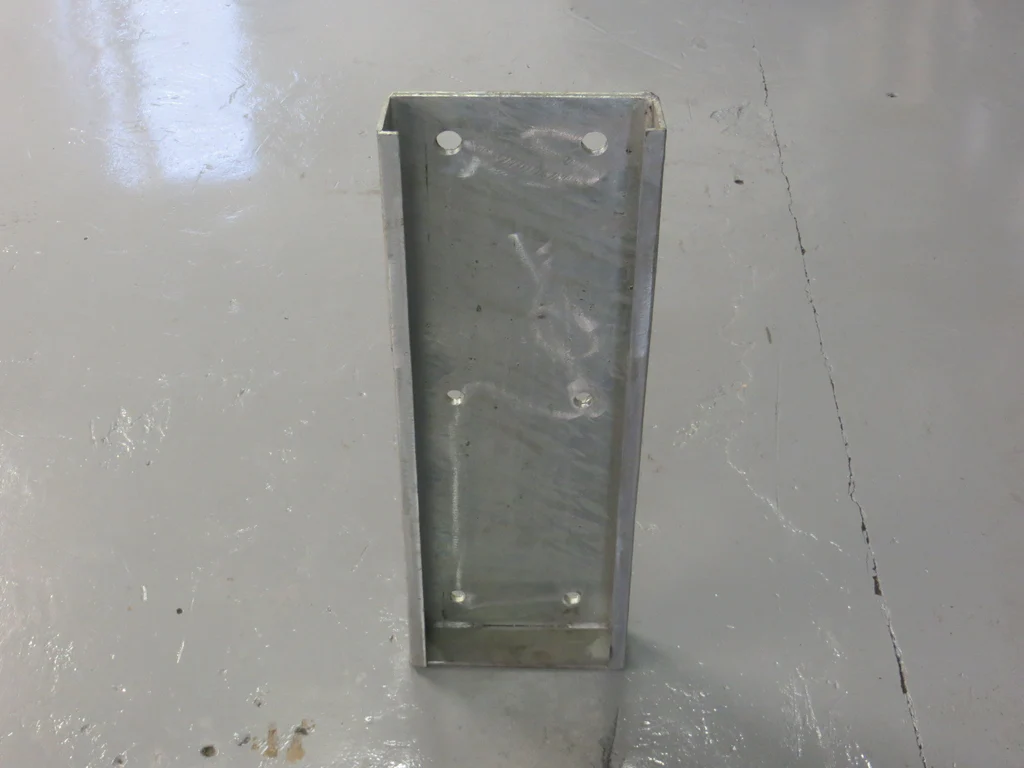

P057 Back Plate

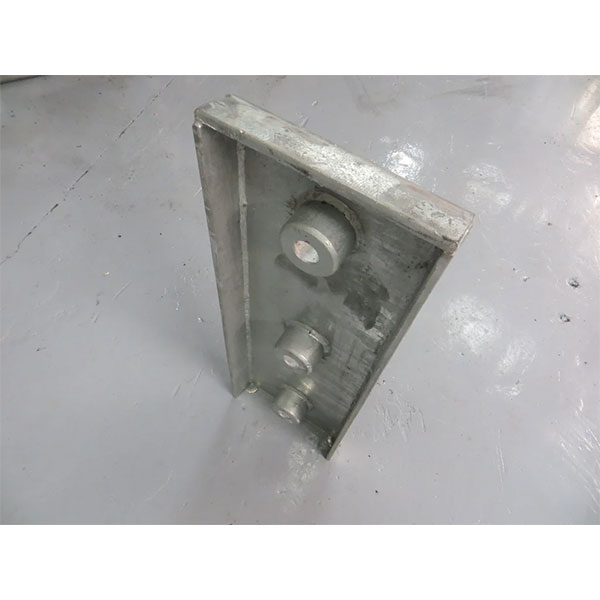

The P057 is the backing plate used in our P023 Dock Bumper.

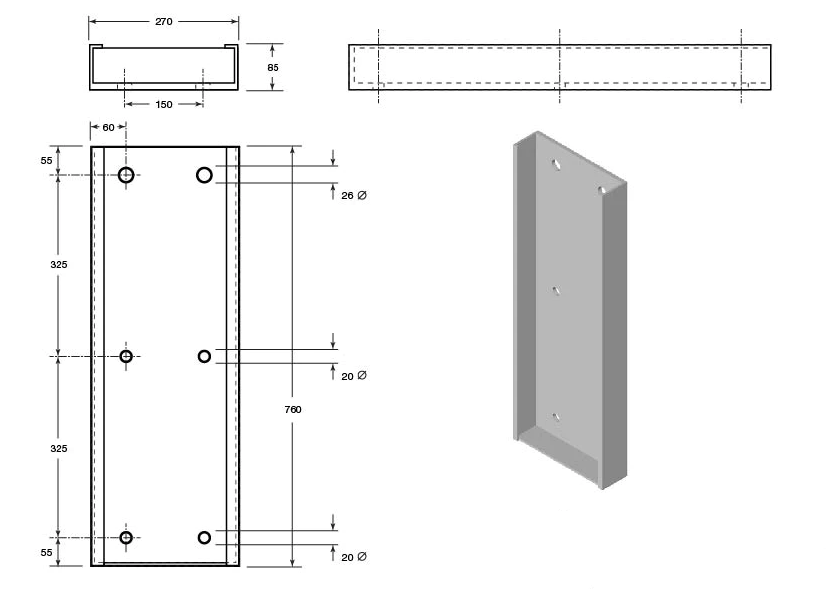

This backplate has six fixing holes… two at the top are 25mm dia to allow for M24 bolts to fix to an above dock angle bracket (if required), two half way down and two at the bottom 20mm dia.

If you require the bumper face alone, please contact the team.
